Takes me from 6.5 psi to 8.5 psi boost.

Page 1 of 2

1

My much anticipated Paxton upgrade kit arrives on 9/14/00.
2

Restrictor air intake is placed first. Part# 8003021.
3

Air box plate is placed second. Part# 4806918.
4

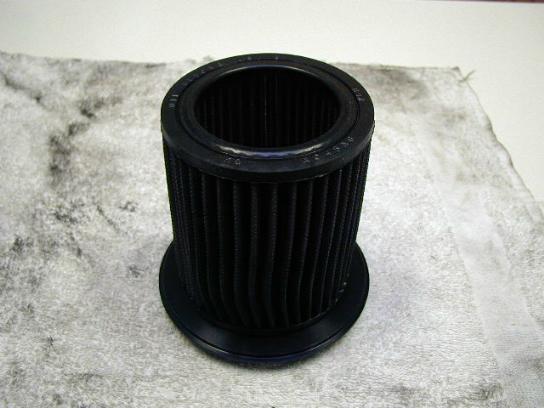

Air filter element is placed third. Part# 3886801.
5

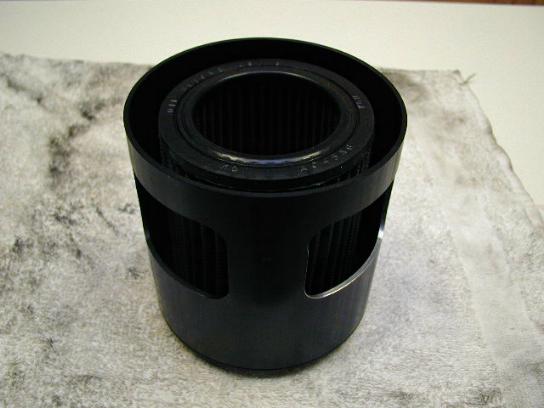

This is the 6.5 psi original air box tube. This goes in fourth. Part# 4810162.
6

Air box plate goes in fifth. Part# 4806919.
7

Flat .312 washer goes in sixth. Part# 1045900.
8

The knob goes in seventh. Part# 3702402.
9

This is the 8.5 psi upgrade air box tube Paxton sent me. I'm replacing the 6.5 psi box tube with this one.
10

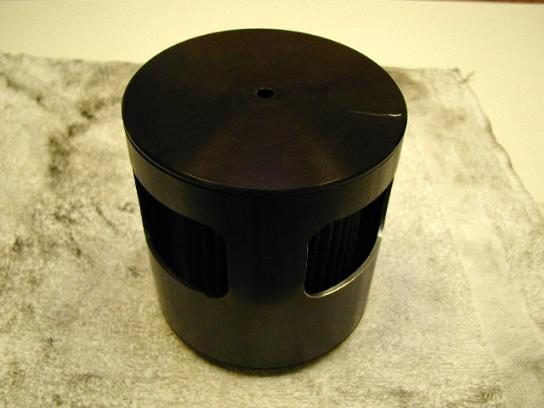

Here is what it will look like intalled.
11

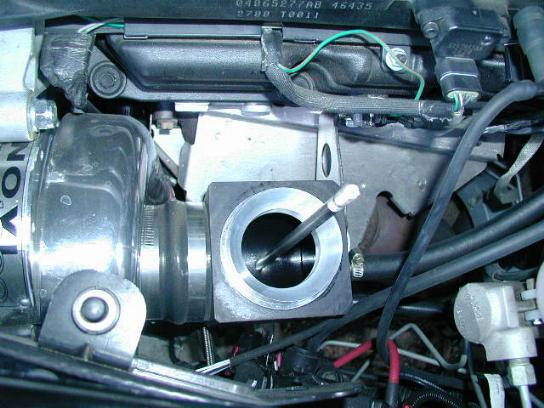

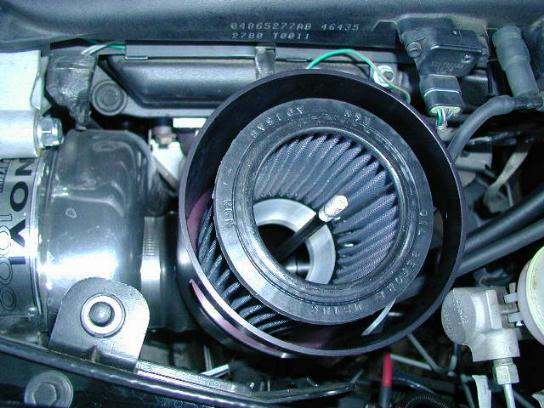

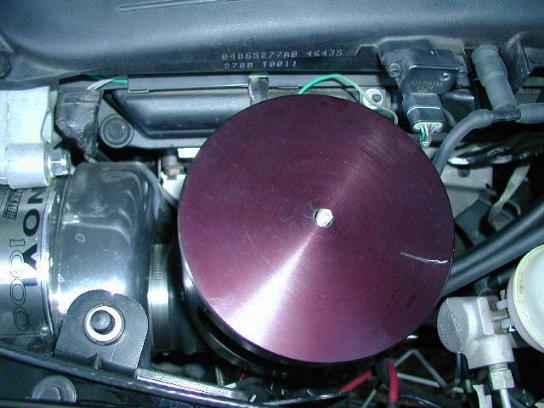

Now I put it together in my Prowler.
12

13

14

15

16
