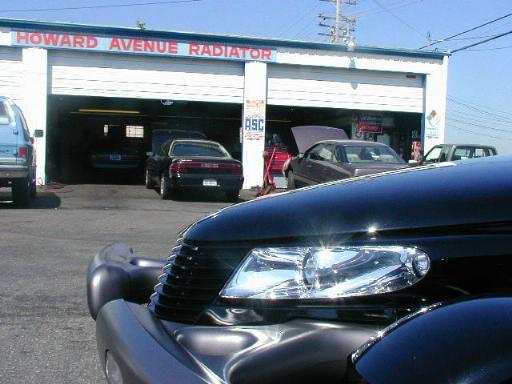

| Radiator Shop that has taken the task of building us our
Kooler Radiators for our Hot Kats. |
|
|
| 2 |
| |
 |
|
| |
|
|

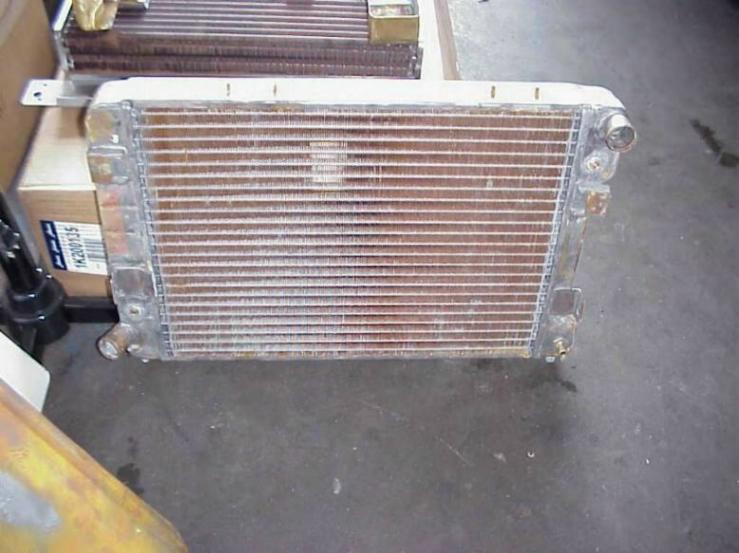

| Here is the stock radiator untouched. |
|
|
| 3 |
| |
 |
|
| |
|
|
|
|
|
| 4 |
| |
 |
|
| |
|
|
| Mr. Radiator Man, please Kool me off, my kitty replies. |
|
|
| 5 |
| |
 |
|
| |
|
|

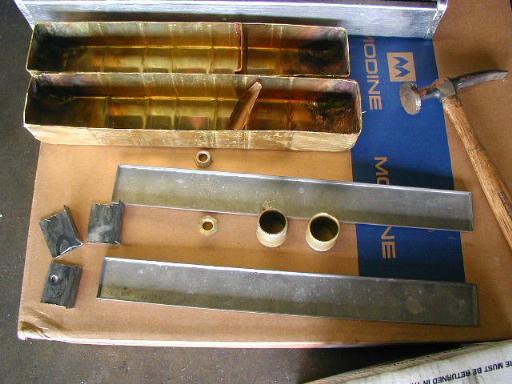

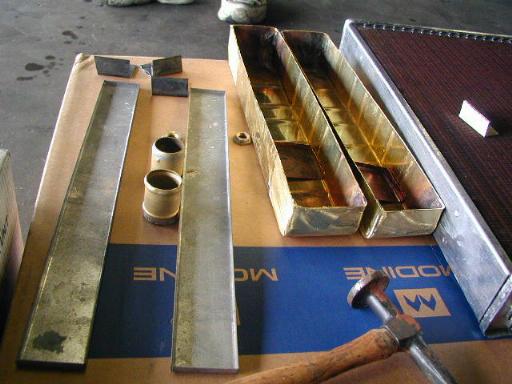

| Here you see the side pieces that will attach to the core. |
|
|
| 6 |
| |
 |
|
| |
|
|

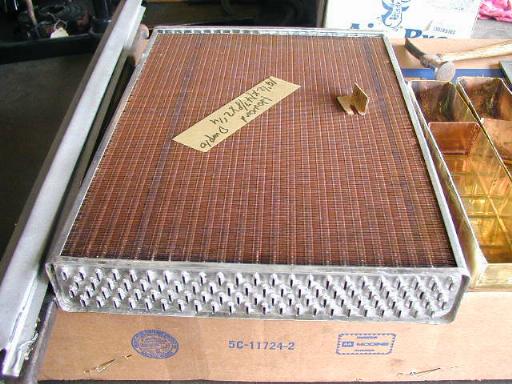

| Here is another view. The water flow will be a snake design
versus and straight thru design. |
|
|
| 7 |
| |
 |
|
| |
|
|

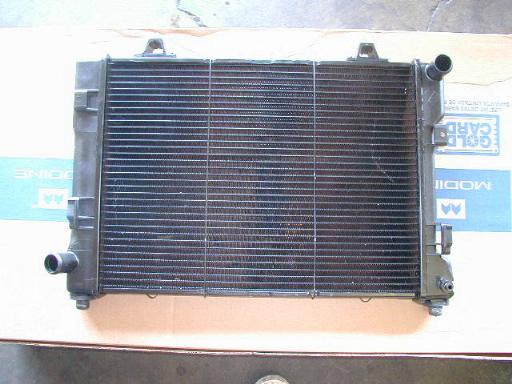

The stock radiator is a 2 row, horizontal radiator, that
is, it flows horizontally one time accross the fan area.
Here is the rear view of the stock radiator. |
|
|
| 8 |
| |
 |
|
| |
|
|
| The new radiator is a 4 row, serpintine radiator with dimpled
tubes. That is the water flows like "S" through the radiator so it
will go accross the fan 3 times. |
|
|
| 9 |
| |
 |
|
| |
|
|

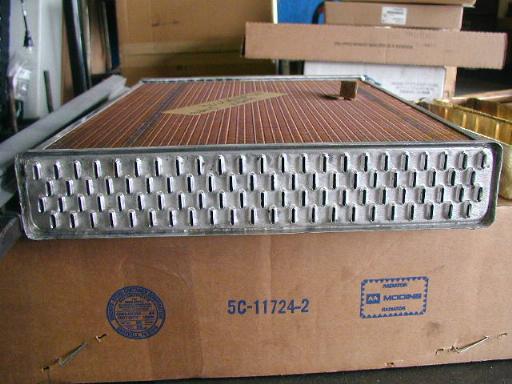

| Here you see the left side of this BAD boy core. |
|
|
| 10 |
| |
 |
|
| |
|
|
| Some more shots of the top of the stock radiator. |
|
|
| 11 |
| |
 |
|
| |
|
|

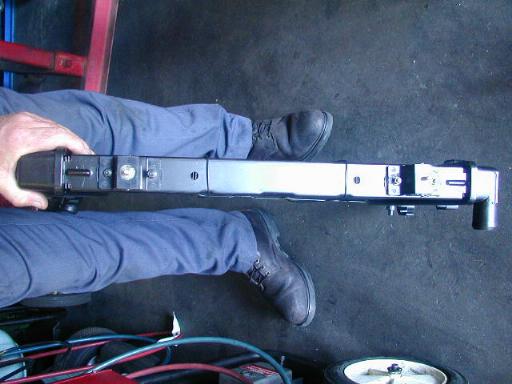

| Front view of the stock radiator. |
|
|
| 12 |
| |
 |
|
| |
|
|

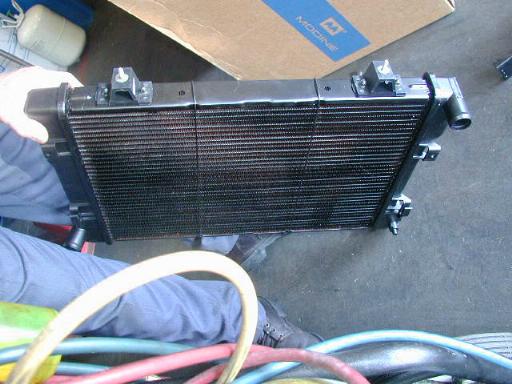

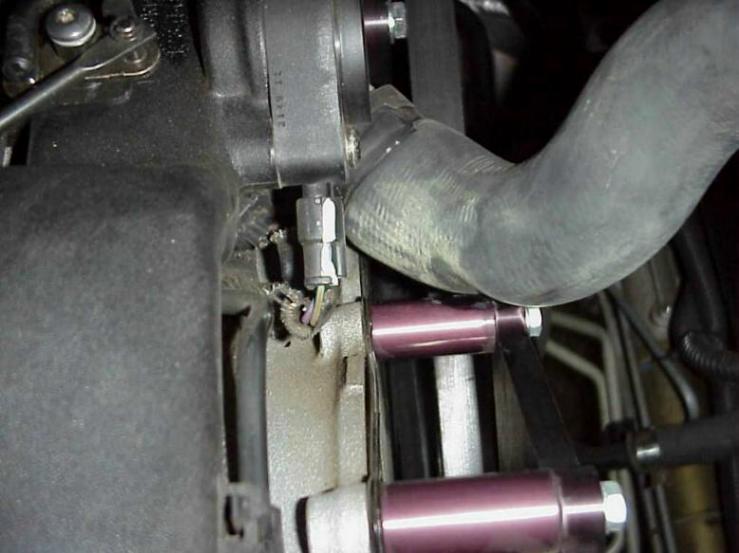

| Silver Bullet's Paxton kit bolts are touching the radiator
hose. |
|
|
| 13 |
| |
 |
|
| |
|
|
|
Top view of the BAD boy core. |
|
| 14 |
| |
 |
|
| |
|
|

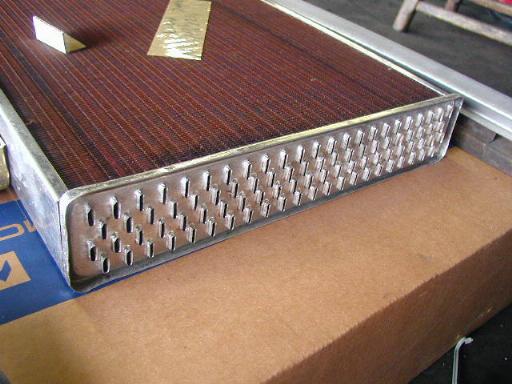

| Here you see the sides and how they will be attached. |
|
|
| 15 |
| |
 |
|
| |
|
|
| Here is John Davies completed radiator. |
|
|
| 16 |
| |
 |
|
| |
|
|

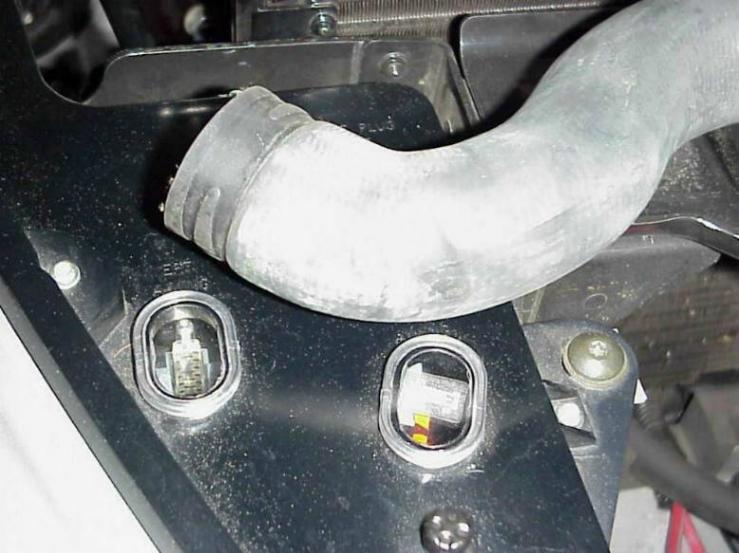

| Here you see Silver Bullet's wear on its radiator hose due
to clearance issues. |
|
|
