Page 1 of 2



1

2

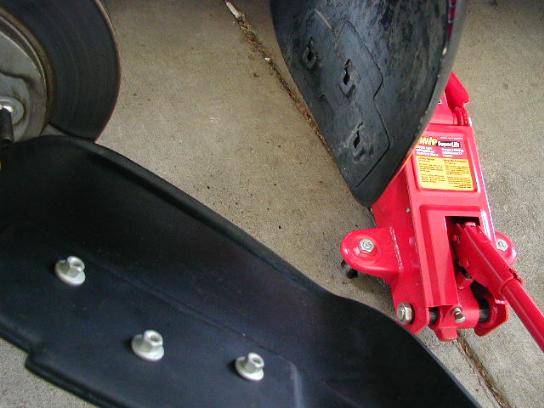

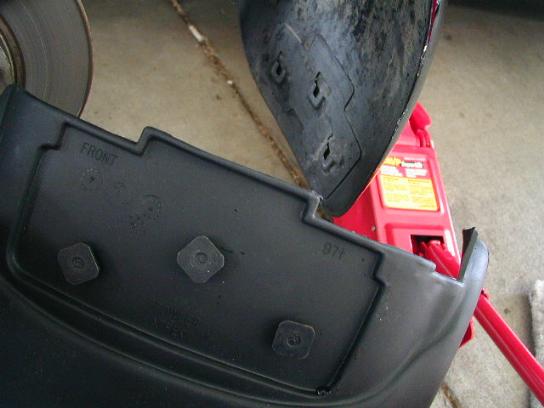

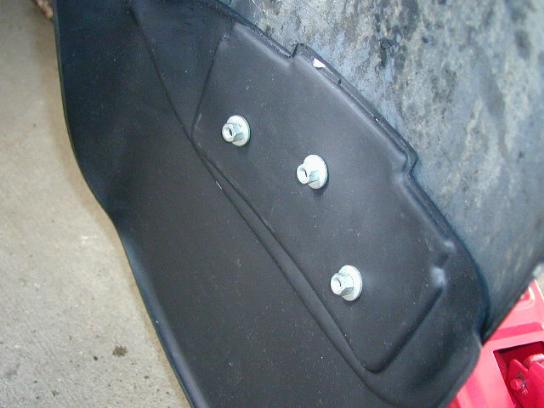

Front left splash  guard with a rear view of the fastening bolts in place.
3

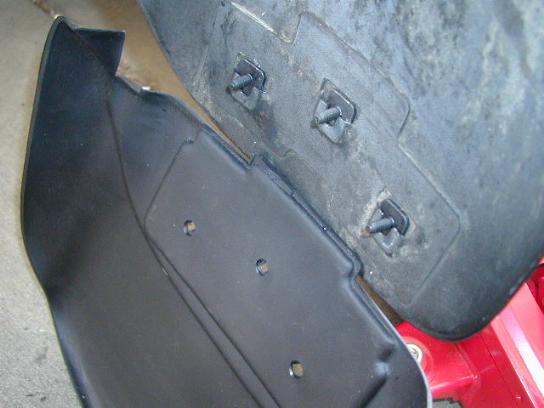

Front left splash guard with a front view of the fastening bolts in place.
4

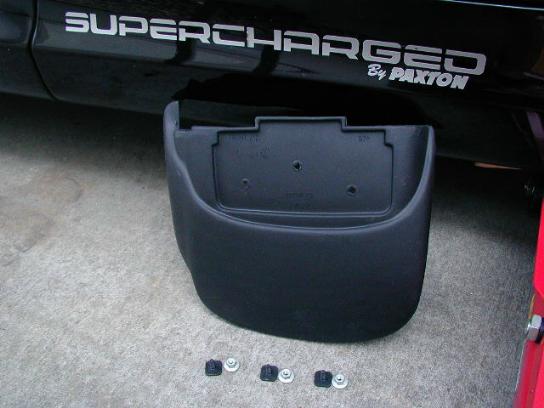

Front left splash guard view before install.
5

Front left splash guard view with fastening bolts in place.
6

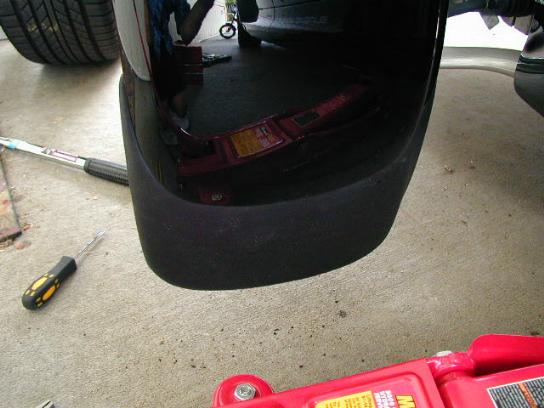

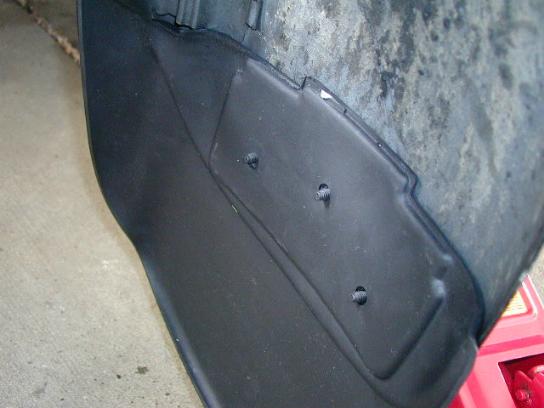

Front left splash guard in place.
7

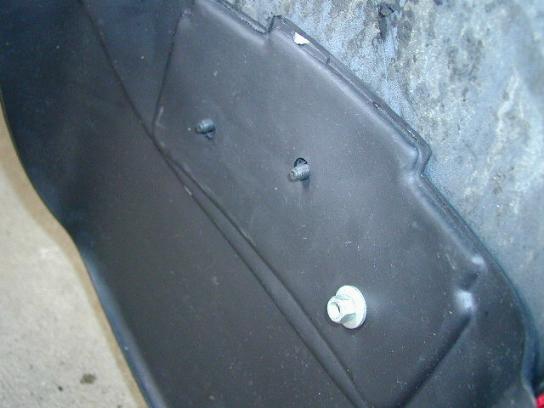

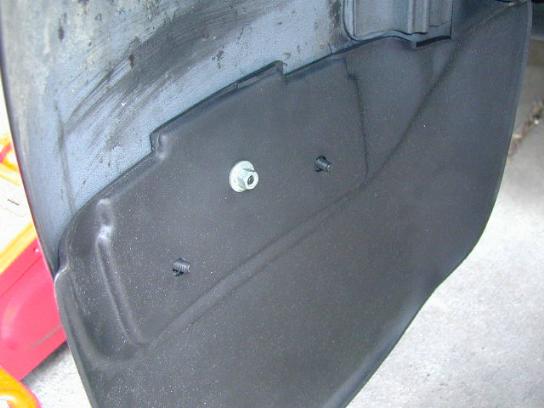

Front left splash guard with one screw in place.
8

Front left splash guard with three screws in place.
9

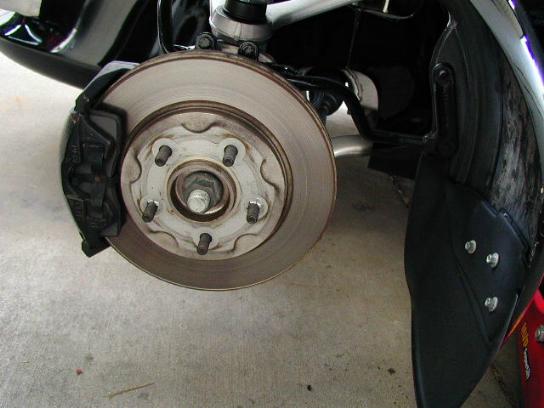

Front left splash guard installed..
10

Another view.
11

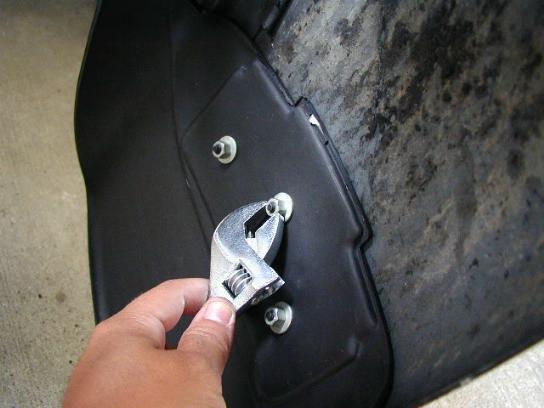

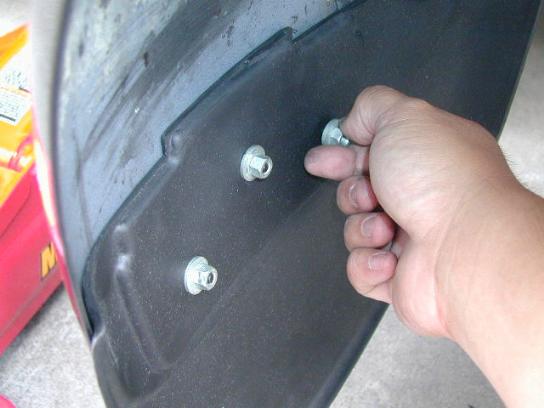

Securing all the screws.
12

Now to work on the front right splash guard.
13

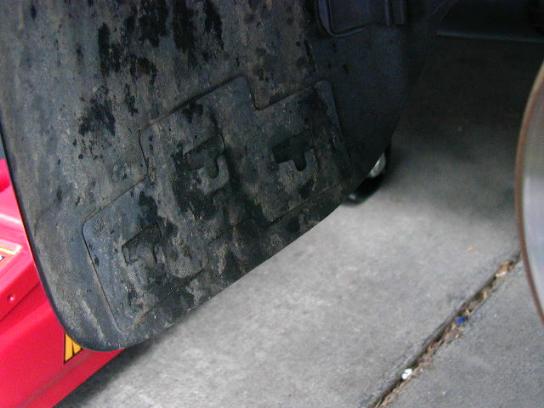

Very dirty.
14

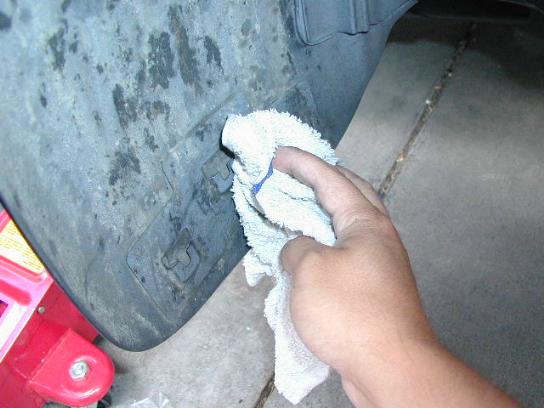

Wiping it a little.
15

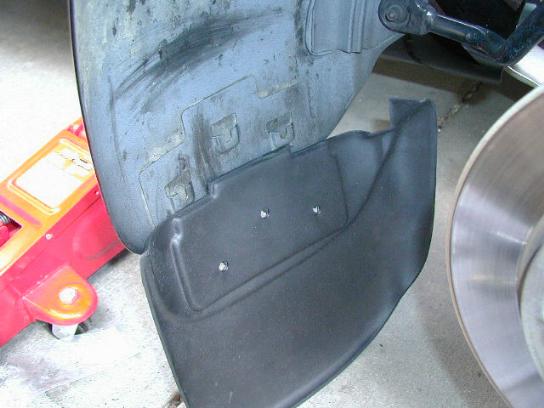

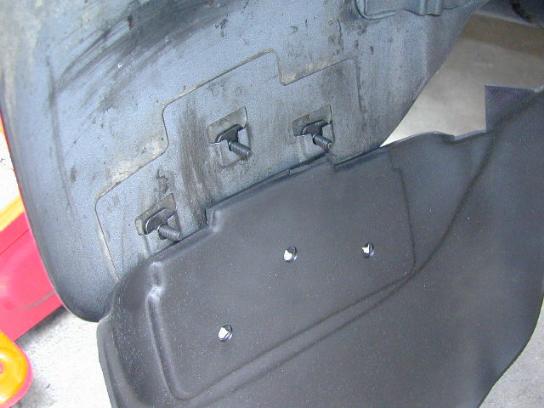

A view before the install. Repeating the procedures we did earlier.
16

17

18

19

20

Now we begin on the rear splash guards. Here is the box they came in.
